General Data
Voltage
AC220-240V 50-60Hz
Power Factor
0.9
Light Source
LED
Operating Temp
-15°C to 25°C
Materials
Steel body white finish, Opal cover

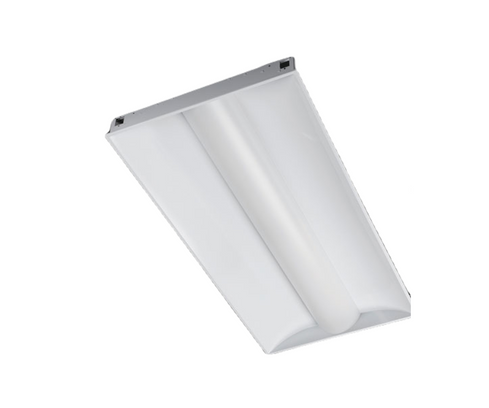

NM3 DIRECT/INDIRECT PANEL

The MN3 is a range of recessed direct lighting luminaires suitable for areas tha trequire a higher light output.

Environment

Interior

Designed to be fitted in standard 15mm or 24mm ceiling grid.

Installation
Application

For use in commercial applications.

To play, press and hold the enter key. To stop, release the enter key.

Low Glare
UGR < 19
Highly Efficient
105lm/W
PDF DL.png
Specs
Diagram
Filters:
Lumens
Watts
arrow&amp;v
CCT
Beam Angle
arrow&amp;v
Sort by:
arrow&amp;v
arrow&amp;v
CRI
Part Code
Type Description
W
Lm
CCT(k)
CRI(ra)
Beam
ø
COø
H
L
W
V47601
595x595 Direct / Indirect LED Panel
30
3250
4000
110
595
595
V47602
595x595 Direct / Indirect LED Panel
40
4200
4000
110
595
595
V47603
1195x595 Direct / Indirect LED Panel
50
6300
4000
110
1195
595
