MGTUN

wall%252520lamp%252520turned%252520on%25

General Data

Voltage

AC220-240V 50-60Hz

Power Factor

0.95 Light Source

LED

Operating Temp

-20°C to 35°C

Materials

Tempered safety glass diffuser, impact resistant with stainless steel clips and safety clips.Stainless steel body, impact and chemically resistant

MGTUN

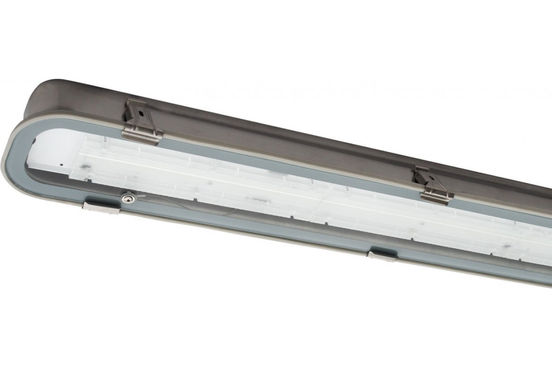

The MGTUN is a waterproof IP66 LED luminaire with aluminium body and tempered glass diffuser. Suited to aggressive atmospheres with cleaning agents, salts acids and mineral oils

Environment

Interior / Exterior

Surface or Suspended

Installation

Application

Suitable for industry, food processing areas, agriculture,
warehouses and other similar applications

To play, press and hold the enter key. To stop, release the enter key.

Aggressive Enviro

Salts & Acids

Tough

IK10

Specs

Diagram

Filters:

Lumens

Watts

CCT

Beam Angle

Sort by:

CRI

Part Code	W	Lm	CCT(k)	CRI(ra)	H	L	W
MGTUN LED1X3250 E890 T830 LS90X100	24.3	3098	3000	80	100	1310	140
MGTUN LED1X3250 E890 T840 LS90X100	24.3	3227	4000	80	100	1310	140
MGTUN LED1X4050 E893 T830 LS90X100	30	3872	3000	80	100	1610	140
MGTUN LED1X4050 E893 T840 LS90X100	30	4034	4000	80	100	1610	140
MGTUN LED1X4400 E891 T830 LS90X100	33.9	4214	3000	80	100	1310	140
MGTUN LED1X4400 E891 T840 LS90X100	33.9	4390	4000	80	100	1310	140
MGTUN LED1X5500 E894 T830 LS90X100	42.3	5268	3000	80	100	1610	140
MGTUN LED1X5500 E894 T840 LS90X100	42.3	5487	4000	80	100	1610	140
MGTUN LED1X6000 E892 T830 LS90X100	50.5	5746	3000	80	100	1310	140
MGTUN LED1X6000 E892 T840 LS90X100	50.5	5986	4000	80	100	1310	140
MGTUN LED1X7500 E895 T830 LS90X100	63.2	7183	3000	80	100	1610	140
MGTUN LED1X7500 E895 T840 LS90X100	63.2	7482	4000	80	100	1610	140
