MGSPI

wall%252520lamp%252520turned%252520on%25

General Data

Voltage

AC220-240V 50-60Hz

Power Factor

0.95 Light Source

LED

Operating Temp

0°C to +35°C

Materials

Clear PMMA diffuser
Faceted aluminium reflector 40 degree standard
Aluminium white finish body with adjustable direction

MGSPI

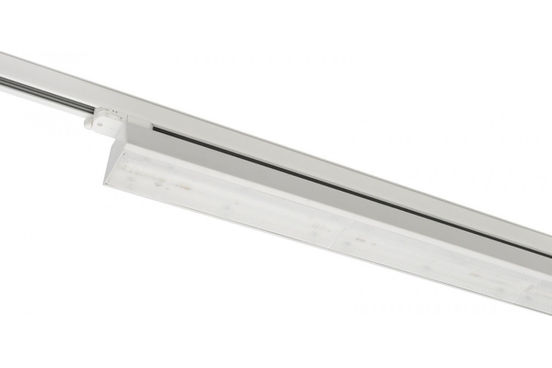

The MGSPI is a linear LED track light with various optics designed for general lighting.

Environment

Interior

Track Mounted

Installation

Application

Suitable for retail, showrooms, museums, exhibition stands and other similar applications

To play, press and hold the enter key. To stop, release the enter key.

Efficacy

121-149lm/W

Long Life

75,000 Hours

Specs

Diagram

Filters:

Lumens

Watts

CCT

Beam Angle

Sort by:

CRI

Part Code	W	Lm	CCT(k)	CRI(ra)	H	L	W
MGSPI LED1X1900 D951 T830 LS1A18	12.8	1697	3000	80	70	583	80
MGSPI LED1X1900 D951 T840 LS1A18	12.8	1773	4000	80	70	583	80
MGSPI LED1X1900 D951 T840 LS2A40	12.8	1813	4000	80	70	583	80
MGSPI LED1X2550 D952 T830 LS1A18	17.9	2309	3000	80	70	583	80
MGSPI LED1X2550 D952 T840 LS1A18	17.9	2413	4000	80	70	583	80
MGSPI LED1X2550 D952 T840 LS2A40	17.9	2467	4000	80	70	583	80
MGSPI LED1X2850 D954 T830 LS1A18	18.2	2545	3000	80	70	870	80
MGSPI LED1X2850 D954 T840 LS1A18	18.2	2659	4000	80	70	870	80
MGSPI LED1X2850 D954 T840 LS2A40	18.2	2719	4000	80	70	870	80
MGSPI LED1X3500 D953 T830 LS1A18	25.9	3132	3000	80	70	583	80
MGSPI LED1X3500 D953 T840 LS1A18	25.9	3272	4000	80	70	583	80
MGSPI LED1X3500 D953 T840 LS2A40	25.9	3345	4000	80	70	583	80
MGSPI LED1X3750 D957 T830 LS1A18	24.3	3394	3000	80	70	1155	80
MGSPI LED1X3850 D955 T830 LS1A18	26.3	3464	3000	80	70	870	80
MGSPI LED1X3750 D957 T840 LS1A18	24.3	3546	4000	80	70	1155	80
MGSPI LED1X3850 D955 T840 LS1A18	26.3	3619	4000	80	70	870	80
MGSPI LED1X3750 D957 T840 LS2A40	24.3	3625	4000	80	70	1155	80
MGSPI LED1X3850 D955 T840 LS2A40	26.3	3701	4000	80	70	870	80
MGSPI LED1X5100 D958 T830 LS1A18	35	4619	3000	80	70	1155	80
MGSPI LED1X5200 D956 T830 LS1A18	38	4698	3000	80	70	870	80
MGSPI LED1X5100 D958 T830 LS2A40	35	4723	3000	80	70	1155	80
MGSPI LED1X5100 D958 T840 LS1A18	35	4823	4000	80	70	1155	80
MGSPI LED1X5200 D956 T840 LS1A18	38	4908	4000	80	70	870	80
MGSPI LED1X5100 D958 T840 LS2A40	35	4932	4000	80	70	1155	80
MGSPI LED1X5200 D956 T840 LS2A40	38	5219	4000	80	70	870	80
MGSPI LED1X6950 D959 T830 LS1A18	51.1	6264	3000	80	70	1155	80
MGSPI LED1X6950 D959 T830 LS2A40	51.1	6405	3000	80	70	1155	80
MGSPI LED1X6950 D959 T840 LS1A18	51.1	6577	4000	80	70	1155	80
MGSPI LED1X6950 D959 T840 LS2A40	51.1	6725	4000	80	70	1155	80

General Data

Voltage

AC220-240V 50-60Hz

Power Factor

0.95

Light Source

LED

Operating Temp

0°C to +35°C

Materials

Clear PMMA diffuserFaceted aluminium reflector 40 degree standard Aluminium white finish body with adjustable direction

MGSPI

Environment

Installation

Application

Efficacy

121-149lm/W

Long Life

75,000 Hours

Specs

Diagram

Filters:

Lumens

Watts

CCT

Beam Angle

Sort by:

CRI

Clear PMMA diffuser
Faceted aluminium reflector 40 degree standard
Aluminium white finish body with adjustable direction
