General Data
Voltage
AC220-240V 50-60Hz
Power Factor
>0.95
Light Source
LED
Operating Temp
0°C to 35°C
Materials
Diffuser: opal (OP LT80) or micro-linear prismatic (PRZ) polycarbonate, UV stabilized
Body: extruded aluminium profile, light grey (RAL 9006) finish with sandpaper texture
MGQUAD
The MGQUAD is a suspended LED luminaire with opal diffuser and rectangular design.
Environment
Interior
Surface mounted or suspended with suspension kit.
Installation
Application
Suitable for retail, education and commercial applications
Efficient
108-125lm/W
Long Life
75000 hrs
Specs

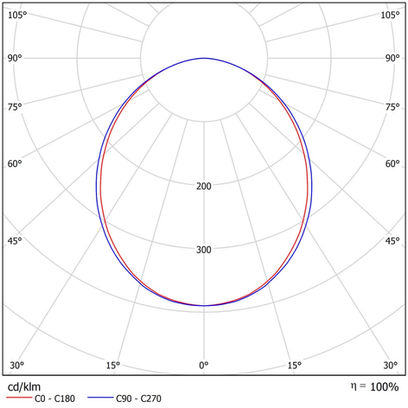

Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGQUAD LED1X4550 D906 T840 OP LT80 | 36.4 | 4542 | 4000 | 80 | LT80 | 68 | 900 | 900 | |||
MGQUAD LED1X6100 D909 T840 OP LT80 | 48.5 | 6056 | 4000 | 80 | LT80 | 68 | 1155 | 77 | |||
MGQUAD LED1X6200 D907 T840 OP LT80 | 52.5 | 6181 | 4000 | 80 | LT80 | 68 | 900 | 900 | |||
MGQUAD LED1X8250 D910 T840 OP LT80 | 70 | 8241 | 4000 | 80 | LT80 | 68 | 1155 | 77 | |||
MGQUAD LED1X8400 D908 T840 OP LT80 | 77.8 | 8383 | 4000 | 80 | LT80 | 68 | 900 | 900 | |||
MGQUAD LED1X11200 D911 T840 OP LT80 | 103.7 | 11177 | 4000 | 80 | LT80 | 68 | 1155 | 77 |
