General Data
Voltage
AC220-240V 50-60Hz
Power Factor
>0.90
Light Source
LED
Operating Temp
0°C to 35°C
Materials
Diffuser: de-glaring or translucent micro-prismatic PMMA, UV stable
Body: steel sheet, white finish
MGLINS

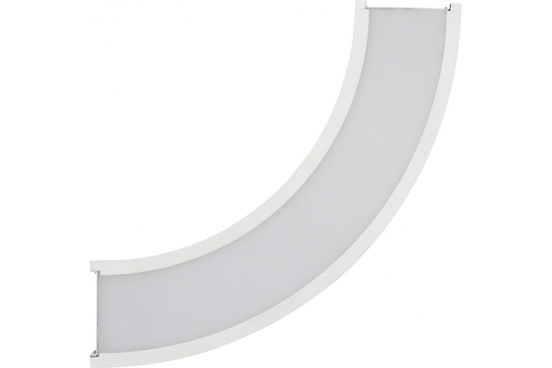

The MGLINR is a curved recessed LED luminaire with translucent micro-prismatic diffuser and in-line connection possibility in a T-bar ceiling.
Environment
Interior
Recessed Ceilings
Installation
Application
For use retail, education and commercial applications.
Efficient
80-114lm/W
Width
62mm
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGLINS LED1X1200 D988 T830 DPRZ LT80 L01 | 10.5 | 858 | 3000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1200 D988 T840 DPRZ LT80 L01 | 10.5 | 897 | 4000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1200 D988 T830 MPRZ LT92 L01 | 10.5 | 1139 | 3000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1650 D989 T830 DPRZ LT80 L0 | 14.6 | 1164 | 3000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1200 D988 T840 MPRZ LT92 L01 | 10.5 | 1190 | 4000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1650 D989 T840 DPRZ LT80 L02 | 14.6 | 1216 | 4000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1650 D989 T830 MPRZ LT92 L02 | 14.6 | 1544 | 3000 | 80 | 62 | 336 | 336 | ||||
MGLINS LED1X1650 D989 T840 MPRZ LT92 L02 | 14.6 | 1613 | 4000 | 80 | 62 | 336 | 336 |
