General Data
Voltage
AC220-240V 50-60Hz
Power Factor
0.8
Light Source
LED
Operating Temp
-25°C to +40°C
Materials
MGLEO

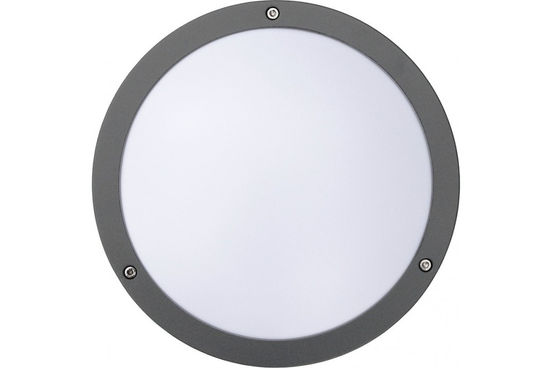

The MGLEO is a surface IP54 LED luminaire with opal diffuser and decorative indirect wall light effect.
Environment
External
Surface
Installation
Application
Suitable for parking areas, public areas and other similar applications
Indirect
Glow Ring
IK08
Eyelid Option
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGLEO 1E27 C402 LOUVRE | 100 | 265 | 265 | ||||||||
MGLEO 1E27 C402 | 90 | 265 | 265 | ||||||||
MGLEO LED1X1200 D034 T830 LOUVRE | 13.6 | 688 | 3000 | 80 | 100 | 265 | 265 | ||||
MGLEO LED1X1200 D034 T840 LOUVRE | 13.6 | 722 | 4000 | 80 | 100 | 235 | 235 | ||||
MGLEO LED1X1200 D034 T830 | 13.6 | 1118 | 3000 | 80 | 90 | 265 | 265 | ||||
MGLEO LED1X1200 D034 T840 | 13.6 | 1173 | 4000 | 80 | 90 | 265 | 265 |
