General Data
Voltage
AC220-240V 50-60Hz
Power Factor
0.95
Light Source
LED
Operating Temp
0°C to +35°C
Materials
Clear tempered glass diffuser
Faceted aluminium reflector 60 degree
Die cast aluminium white finish body, adjustable direction with adaptor
MGKAL

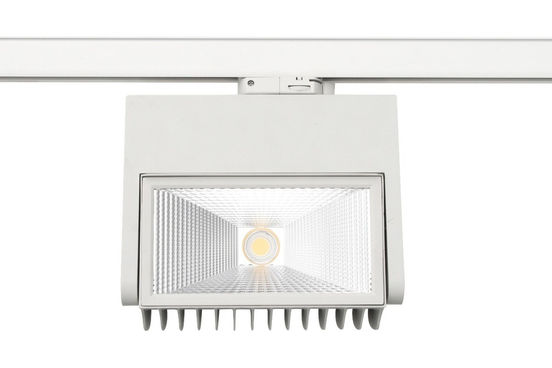

The MGKAL is a rectangular LED track light with symmetrical faceted reflector designed for accent lighting.
Environment
Interior
Designed to be fixed into 4/6 conductor surface/recessed tracks. Track adaptor (3 phase + N) with phase selector.
Installation
Application
Suitable for retail, showrooms, museums, exhibition stands and other similar applications
Adjustable
Track light
Efficacy
108-125lm/W
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGKAL LED1X1700 D749 T930 R60 | 13.3 | 1328 | 3000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X1700 D749 T940 R60 | 13.3 | 1419 | 4000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X1700 D749 T830 R60 | 13.8 | 1623 | 3000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X1700 D749 T840 R60 | 13.8 | 1663 | 4000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X2300 D750 T930 R60 | 18.4 | 1860 | 3000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X2300 D750 T940 R60 | 18.4 | 1988 | 4000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X2300 D750 T830 R60 | 19.1 | 2252 | 3000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X2300 D750 T840 R60 | 19.1 | 2309 | 4000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X3100 D751 T930 R60 | 26.3 | 2540 | 3000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X3100 D751 T940 R60 | 26.3 | 2715 | 4000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X3100 D751 T830 R60 | 27.5 | 3037 | 3000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X3100 D751 T840 R60 | 27.5 | 3115 | 4000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X4550 D789 T930 R60 | 41 | 3657 | 3000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X4550 D789 T940 R60 | 41 | 3909 | 4000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X5250 D748 T930 R60 | 47.6 | 4110 | 3000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X5250 D748 T940 R60 | 47.6 | 4393 | 4000 | 90 | 248 | 226 | 107 | ||||
MGKAL LED1X4550 D789 T830 R60 | 40.9 | 4443 | 3000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X4550 D789 T840 R60 | 40.9 | 4559 | 4000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X5250 D748 T830 R60 | 47.7 | 5139 | 3000 | 80 | 248 | 226 | 107 | ||||
MGKAL LED1X5250 D748 T840 R60 | 47.7 | 5238 | 4000 | 80 | 248 | 226 | 107 |
