General Data
Voltage
AC220-240V 50-60Hz
Power Factor
0.9
Light Source
LED
Operating Temp
-
0 ℃ to 25℃
Materials
Polycarbonate body

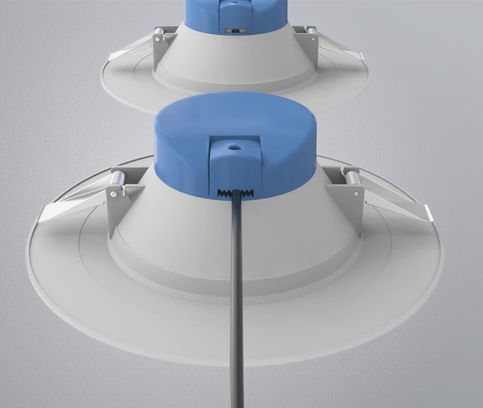

MGCDL DOWNLIGHT
A range of recessed triac dimmable 3CCT downlights.
Environment
Interior
Designed to be recessed mounted.
Installation
Application
For use in retail, offices, showrooms and other similar applications.
Switchable CCT
3000k,4000k,6000k
Water Resistant
IP54
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
V419901 | Switchable CCT LED downlight | 7 | 600 | 3CCT | 85 | 70 | 55 | ||||
V419902 | Switchable CCT LED downlight | 10 | 870 | 3CCT | 115 | 90 | 61 | ||||
V419903 | Switchable CCT LED downlight | 13 | 1260 | 3CCT | 145 | 120 | 63 | ||||
V419904 | Switchable CCT LED downlight | 14 | 1680 | 3CCT | 190 | 160 | 74 | ||||
V419905 | Switchable CCT LED downlight | 19 | 2100 | 3CCT | 225 | 200 | 89 |
