General Data
Voltage
AC220-240V 50-60Hz
Power Factor
>0.95
Light Source
LED
Operating Temp
0°C to 35°C
Materials
Diffuser: translucent micro-prismatic, PMMA, UV stable, mounted into frameless body
Body: steel sheet, white finish
MGBALR

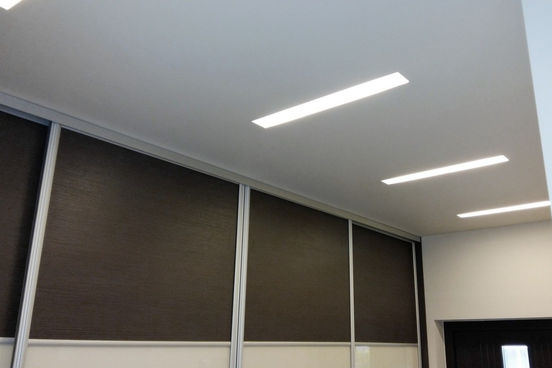

The MGBALR is a frameless linear recessed luminaire suitable for a wide range of applications.
Environment
Interior
Recessed Plasterboard
Installation
Application
For use retail, education and commercial applications.
Efficient
97-116lm/W
Width
85mm
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGBALR LED1X1100 D720 T830 MPRZ LT92 | 10.7 | 1038 | 3000 | 80 | 85 | 220 | 220 | ||||
MGBALR LED1X1150 D722 T830 MPRZ LT92 | 10.2 | 1073 | 3000 | 80 | 65 | 595 | 85 | ||||
MGBALR LED1X1100 D720 T840 MPRZ LT92 | 10.7 | 1094 | 4000 | 80 | 85 | 220 | 220 | ||||
MGBALR LED1X1150 D722 T840 MPRZ LT92 | 10.2 | 1121 | 4000 | 80 | 65 | 595 | 85 | ||||
MGBALR LED1X1550 D721 T830 MPRZ LT92 1 | 14.7 | 1450 | 3000 | 80 | 85 | 220 | 220 | ||||
MGBALR LED1X1550 D723 T830 MPRZ LT92 | 13.9 | 1460 | 3000 | 80 | 65 | 595 | 85 | ||||
MGBALR LED1X1550 D723 T840 MPRZ LT92 | 13.9 | 1525 | 4000 | 80 | 65 | 595 | 85 | ||||
MGBALR LED1X1550 D721 T840 MPRZ LT92 | 14.7 | 1529 | 4000 | 80 | 85 | 220 | 220 | ||||
MGBALR LED1X1700 D724 T830 MPRZ LT92 | 14.5 | 1609 | 3000 | 80 | 65 | 875 | 85 | ||||
MGBALR LED1X1700 D724 T840 MPRZ LT92 | 14.5 | 1681 | 4000 | 80 | 65 | 875 | 85 | ||||
MGBALR LED1X2250 D726 T830 MPRZ LT92 | 19.3 | 2145 | 3000 | 80 | 65 | 1155 | 85 | ||||
MGBALR LED1X2300 D725 T830 MPRZ LT92 | 20.8 | 2189 | 3000 | 80 | 65 | 875 | 85 | ||||
MGBALR LED1X2250 D726 T840 MPRZ LT92 | 19.3 | 2241 | 4000 | 80 | 65 | 1155 | 85 | ||||
MGBALR LED1X2300 D725 T840 MPRZ LT92 | 20.8 | 2287 | 4000 | 80 | 65 | 875 | 85 | ||||
MGBALR LED1X2850 D728 T830 MPRZ LT92 | 24.1 | 2681 | 3000 | 80 | 65 | 1435 | 85 | ||||
MGBALR LED1X2850 D728 T840 MPRZ LT92 | 24.1 | 2801 | 4000 | 80 | 65 | 1435 | 85 | ||||
MGBALR LED1X3100 D727 T830 MPRZ LT92 | 26.3 | 2919 | 3000 | 80 | 65 | 1155 | 85 | ||||
MGBALR LED1X3100 D727 T840 MPRZ LT92 | 26.3 | 3050 | 4000 | 80 | 65 | 1155 | 85 | ||||
MGBALR LED1X3850 D990 T830 MPRZ LT92 | 32.8 | 3649 | 3000 | 80 | 65 | 1435 | 85 | ||||
MGBALR LED1X3850 D990 T840 MPRZ LT92 | 32.8 | 3812 | 4000 | 80 | 65 | 1435 | 85 |
