General Data
Voltage
AC220-240V 50-60Hz
Power Factor
0.9
Light Source
LED
Operating Temp
-15℃ to 35℃
Materials
Polycarbonate base and diffuser

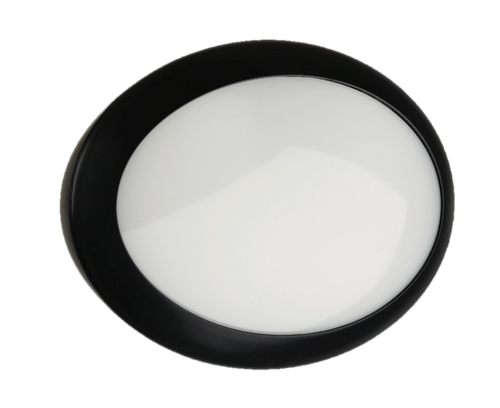

CORONA 1
The Corona 1 is a range of circular or square wall mounted bulkheads.
Environment
Interior or exterior
Surface ceiling or wall
Installation
Application
For use apartment blocks, corridors, hotels,
stairwells and other similar applications.
Tough
IK10
Long Life
50000
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
V417108 | Circular White Bulkhead | 18 | 1460 | 4000 | 80 | 350 | 120 | ||||
V417109 | Circular Black Bulkhead | 24 | 2085 | 3000 | 80 | 400 | 120 | ||||
V417112 | Circular White Bulkhead | 24 | 2085 | 4000 | 80 | 400 | 120 | ||||
V417110 | Circular Black Bulkhead | 24 | 2085 | 4000 | 80 | 400 | 120 | ||||
V417111 | Circular White Bulkhead | 24 | 2085 | 3000 | 80 | 400 | 120 |
